Consulate Repair Manuel When Installing Steering Wheel
or Turn Signal Switch Assembly
1- Point Front Wheels Straight Ahead
2- Rotate 2.5 Turns From Left End
3- Follow the instruction
====================

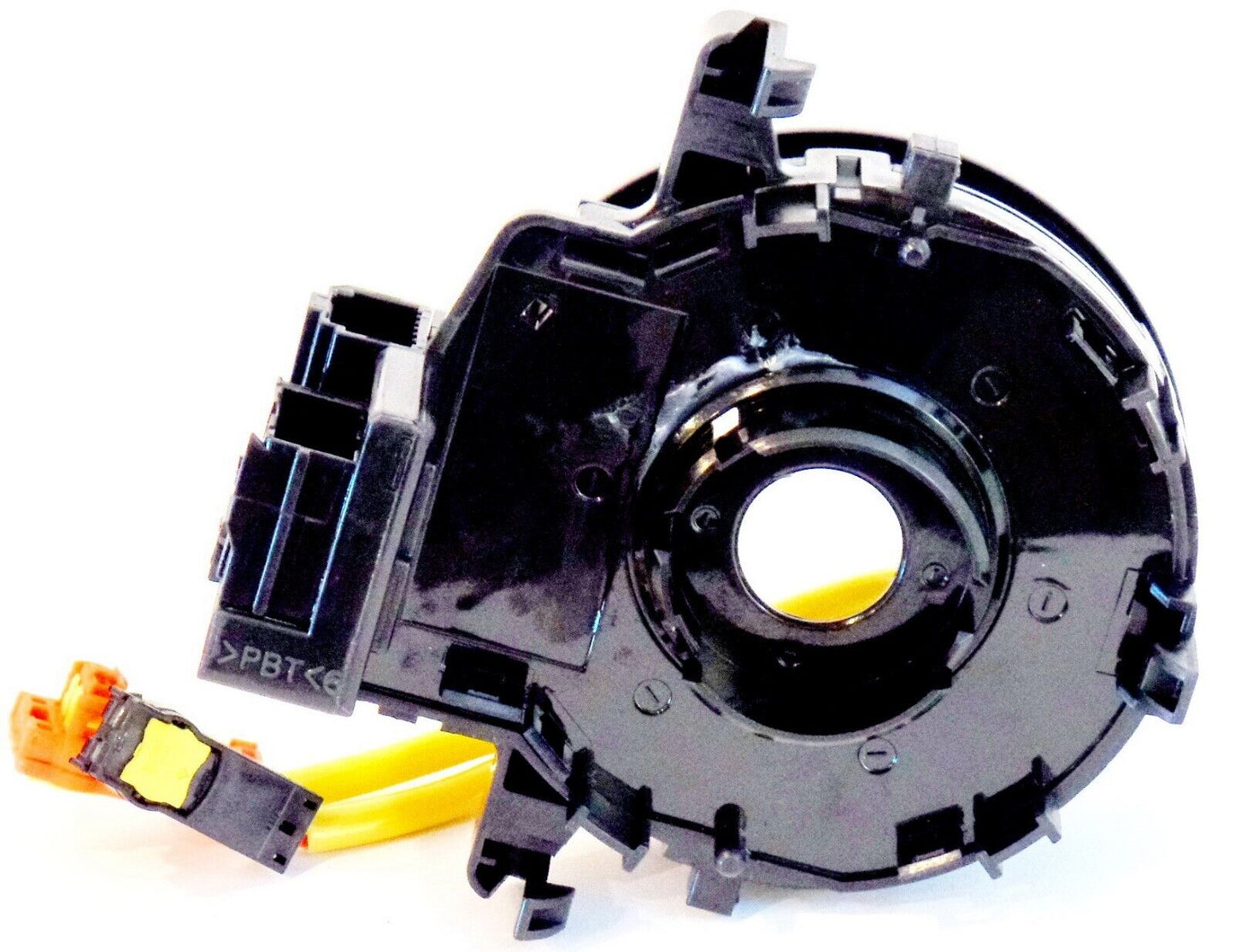

Part#
CSP6301
======
Specifications:
Category
Clockspring
Connector Gender
Female
Connector Shape
Rectangular
Terminal Gender
Male
Terminal Quantity
11
Terminal Type
Blade & Pin
===============================
Fits:
TOYOTA
COROLLA
2009-2013
==================================
Vehicle Fitment
2009-2013 Toyota Corolla
w/o Steering Wheel Audio Controls; Built In U.S.
LE, STD|4 Cyl 1.8L
2ZRFE; 2ZRFE; ZRE142L-
AEPDKA, ZRE142L-AEPNKA
==================================
) Direct-fit replacement electrically operated switch that replaces damaged OE units increasing road safety and restoring steering wheel function b) Engineered using copper alloy conductors ensuring superior electrical conductivity with low resistive losses c)Feature a robust design with high grade materials to meet the stringent demands of today's service professional d)Made to OE spec to ensure proper fit, form and function
